Oracle as Target

General parameters

  • database – The only appropriate value is target
  • dbtype – The appropriate value is oracle
  • generatesql – This parameter is to identify if database objects are to be created immediately (0 - value, default), or the SQL script creating these objects should be generated (1 value).

Database Connectivity

  • connectiontype – Specifies the Oracle connection method, the possible values are:
    • tns – Local Naming Method to be used
    • ezconnect – EZCONNECT to be used
  • tnsname – Name of the TNS alias, valid only if connectiontype=tns
  • server – Host name or IP address of the database server, valid only if connectiontype=ezconnect
  • port – Database port number, valid only if connectiontype=ezconnect
  • servicename – Database service name or SID, valid only if connectiontype=ezconnect
  • user – Database User name
  • password – Database User password



Web UI

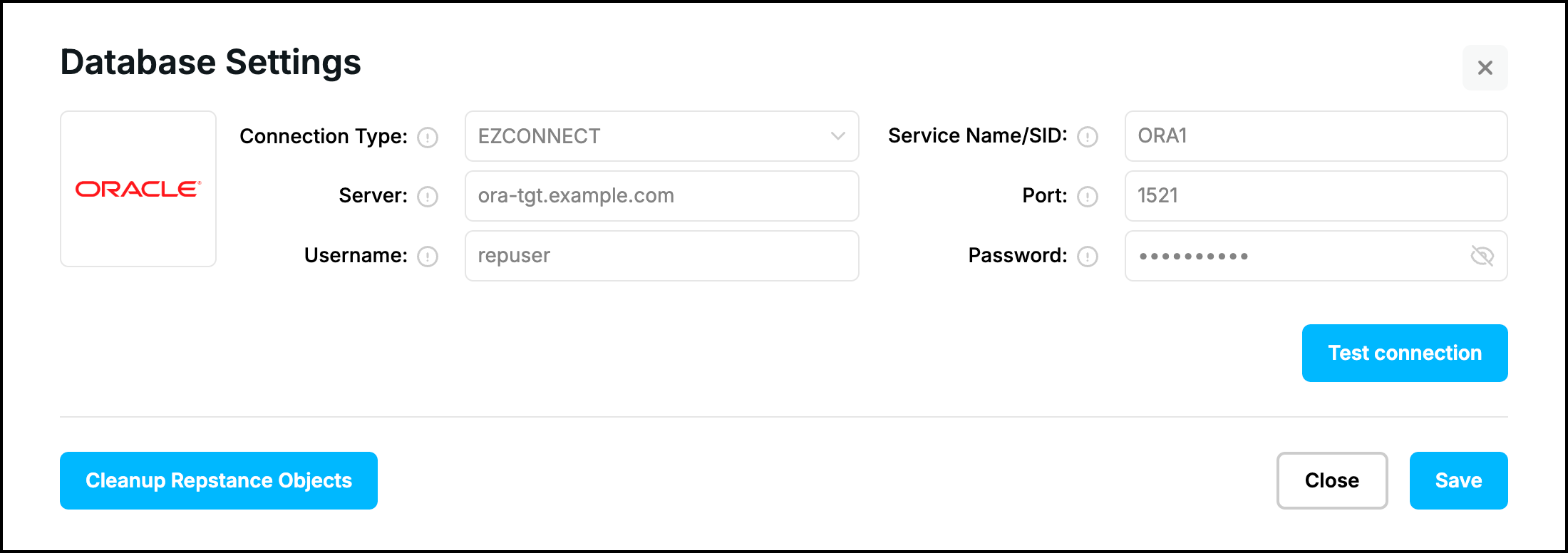

To prepare Oracle as a Target database, on the “Database Settings” form select Connection Type, provide the database connectivity parameters and click “Test connection” and then “Prepare for Replication” button:



Clicking on the “Show Prepare SQL” will generate script creating necessary replication objects.
